JBL Summit Ama Stand-Mount Loudspeakers

Introducing

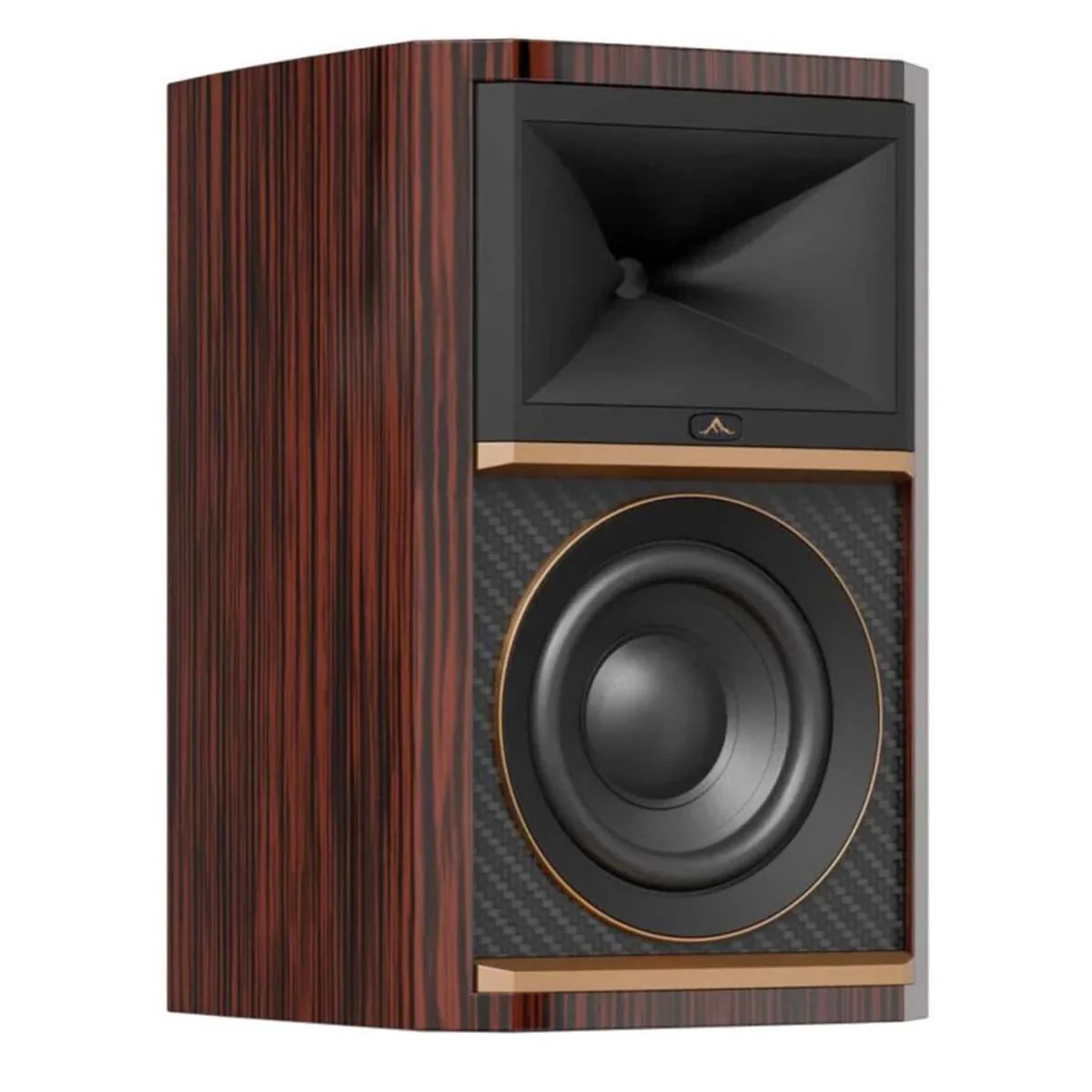

The Summit Ama, a stand-mount loudspeaker built for the discerning music enthusiast. It features a newly designed complement of drivers starting with JBL’s D2815K 1.5-inch (38mm) dual-diaphragm, dual-motor compression driver mated to a large format Sonoglass High-Definition Imaging (HDI) horn. Anchoring the sound foundation of Summit Ama is an 8-inch (200mm) cast-frame woofer utilizing a triple-layer Hybrid Carbon Cellulose Composite Cone (HC4), a design made from a proprietary formula of carbon-fiber and pure-pulp front and rear surfaces, sandwiched with an internal core of closed-cell foam. This hybrid cone design provides the proper stiffness, overall mass, and structure to deliver high-output, low distortion, and high power handling.

Controlling how the signal is distributed to each of the drivers in Summit Ama is a MultiCap crossover network with single-wire and bi-amp/bi-wire connectivity. By replacing traditional large capacitors with an increased number of smaller capacitors, this design results in lower ESR (Electro-Static Resistance) and less energy lost in mechanical movement. All of which results in greater signal throughput to the drivers, increased power handling, enhanced dynamics, ultra-low distortion, and exceptional clarity. All drivers and crossover components are housed in a beautifully engineered cabinet featuring internally offset multi-braced and damped curved-wall construction to minimize internal cabinet standing waves. Enclosures are offered in a choice of a high-gloss painted black finish with Summit platinum accents or high-gloss ebony wood veneer finish with Summit gold accents.

Highlights

• Dual 1.5-inch (38mm) Annular Ring Teonex Diaphragms, Dual-Motor D2 Compression Driver Mated to the Summit Ama High-Definition Imaging (HDI) Sonoglass High-Frequency Horn
• 8-inch (200mm), Triple-layer Hybrid Carbon Cellulose Composite Cone (HC4) with Dual Inverted Spiders, 2.5-inch Voice Coil, Ferrite Motor, Cast Aluminum Frame, and Half-Forward-Roll Surround

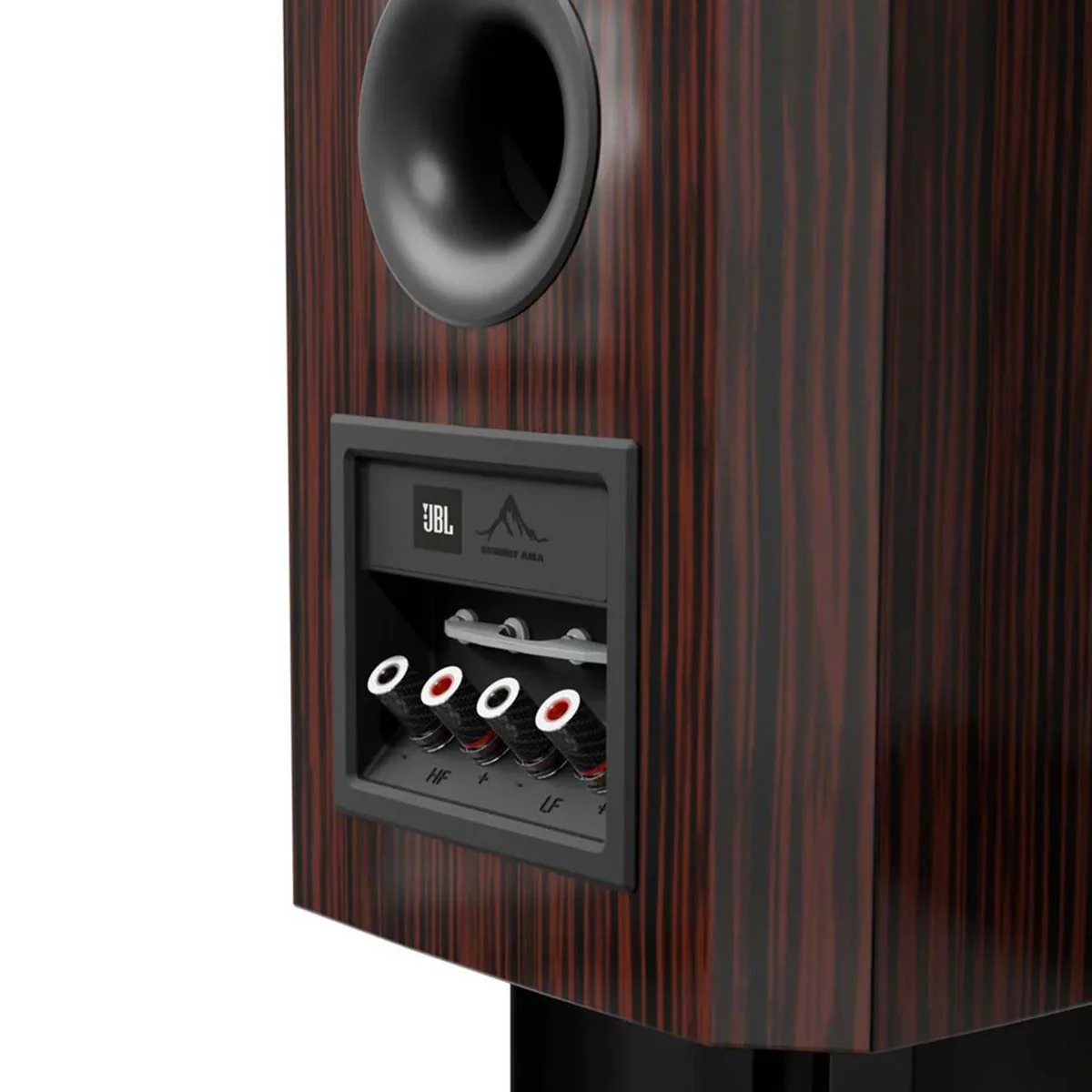

• MultiCap™ Crossover Network with Single-wire and Bi-Amp/Bi-Wire Connectivity
• Frequency Response: 25Hz–33kHz (-10dB) / 34Hz–25kHz (-6dB)
• Soft-curved Cabinet Walls with Heavily Braced and Dampened Construction from sustainably-sourced engineered wood

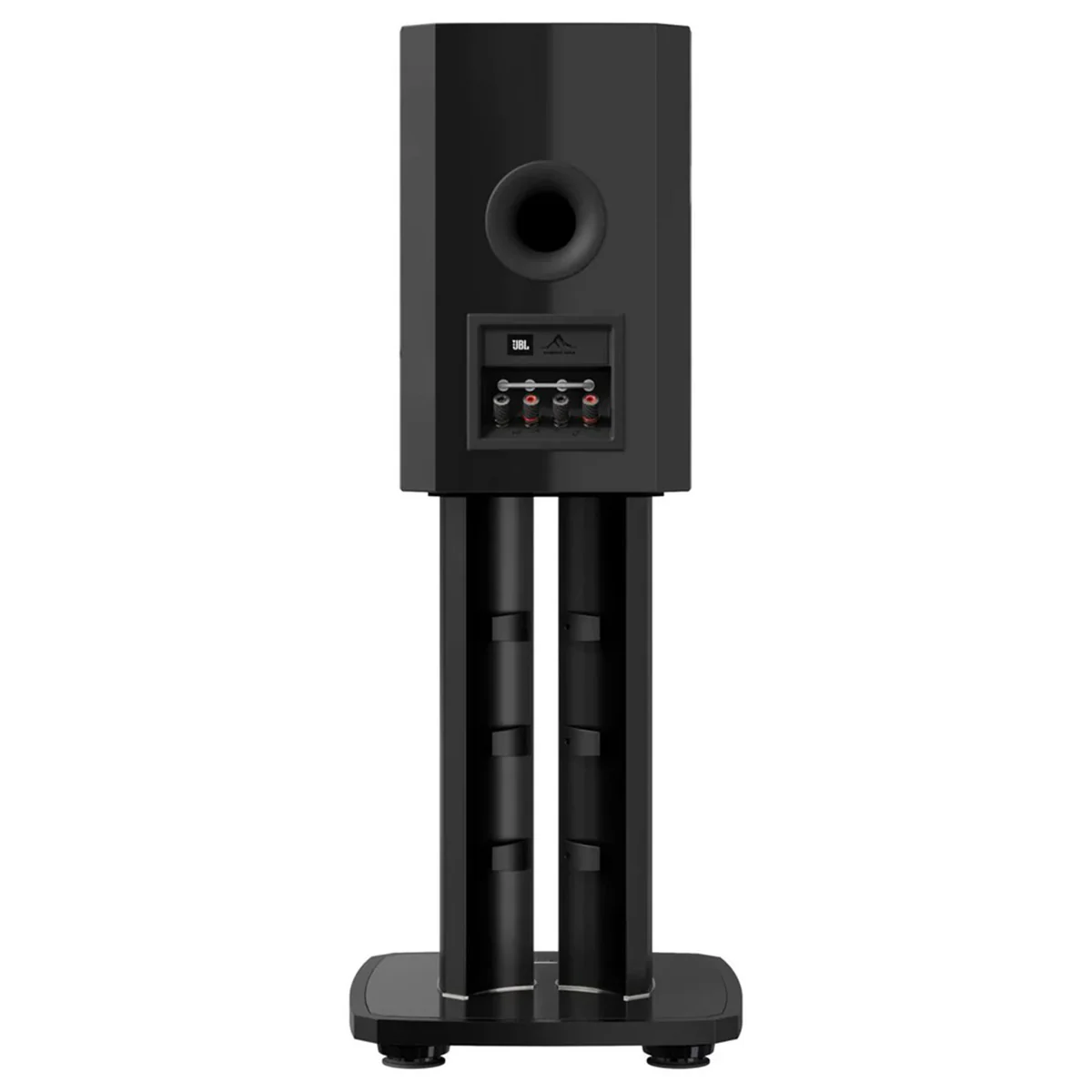

• Internally damped, Dual-leg Steel and Aluminum Floor Stand with JBL/IsoAcoustics Adjustable Acoustic Isolation Feet
• Luxurious High Gloss Finishes with Summit Platinum or Summit Gold detailing and bespoke Carbon-Fiber Baffle Trim
